XJ600e: Knee scoops

Had a quick go at a loose human occupant package. 97.5 male %ile manikin and xj600 bike are to scale. When laid over a sketch it would seem that I am on the dot for the scoops at the moment when it is positioned in line with the intersection of bars that are normally under the fuel tank. Now, one must remember that 97.5 %ile Dutch male (approx 1.90m / 6ft 2in) is the largest type of person used in transport ergonomics so the scoops would be more than adequate for the ‘average’ man on the street.

xj600-rough-line-frame-ergo01a
xj600-rough-line-frame-ergo01

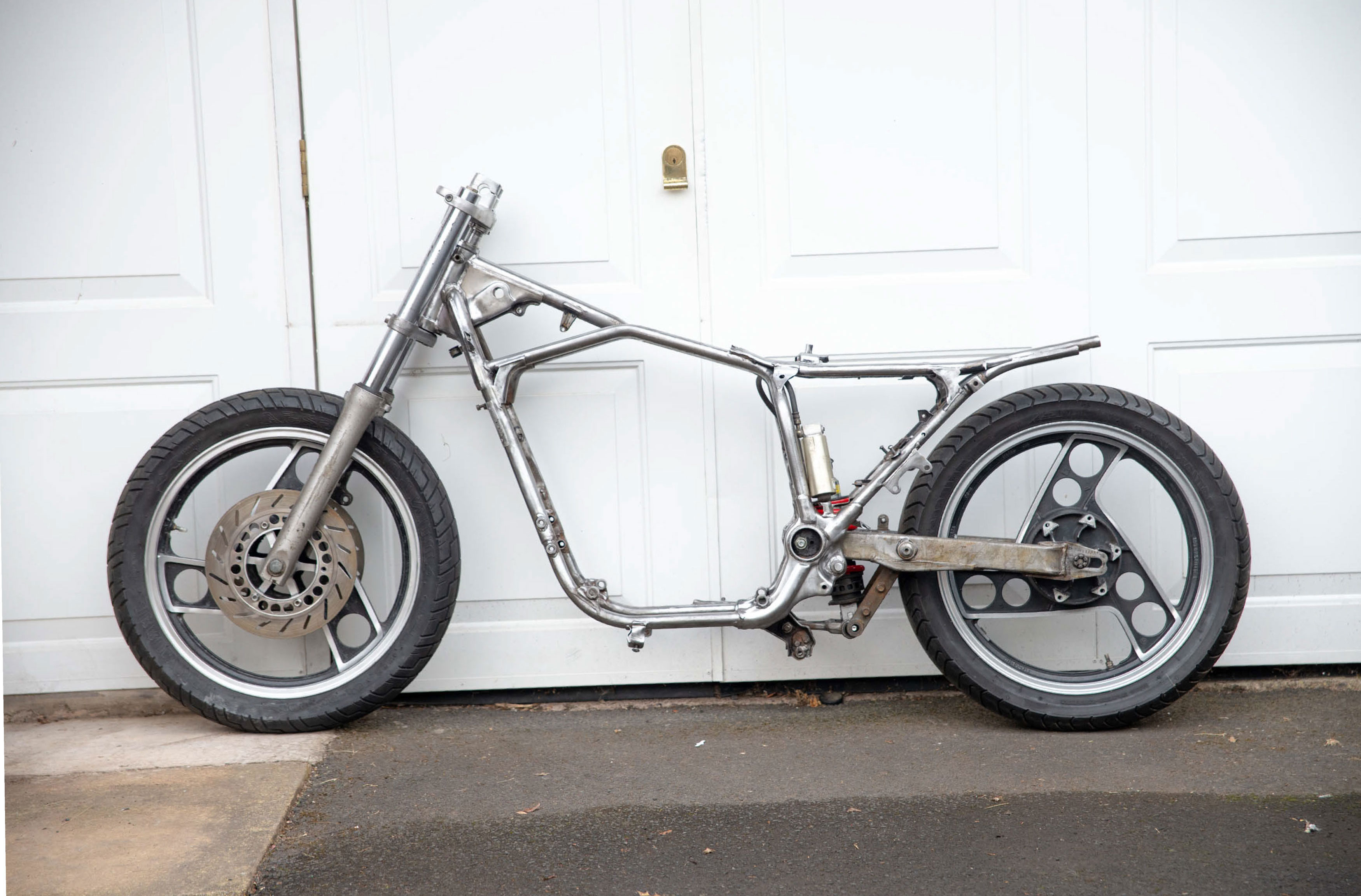

xj600-rough-line-frame-photo
