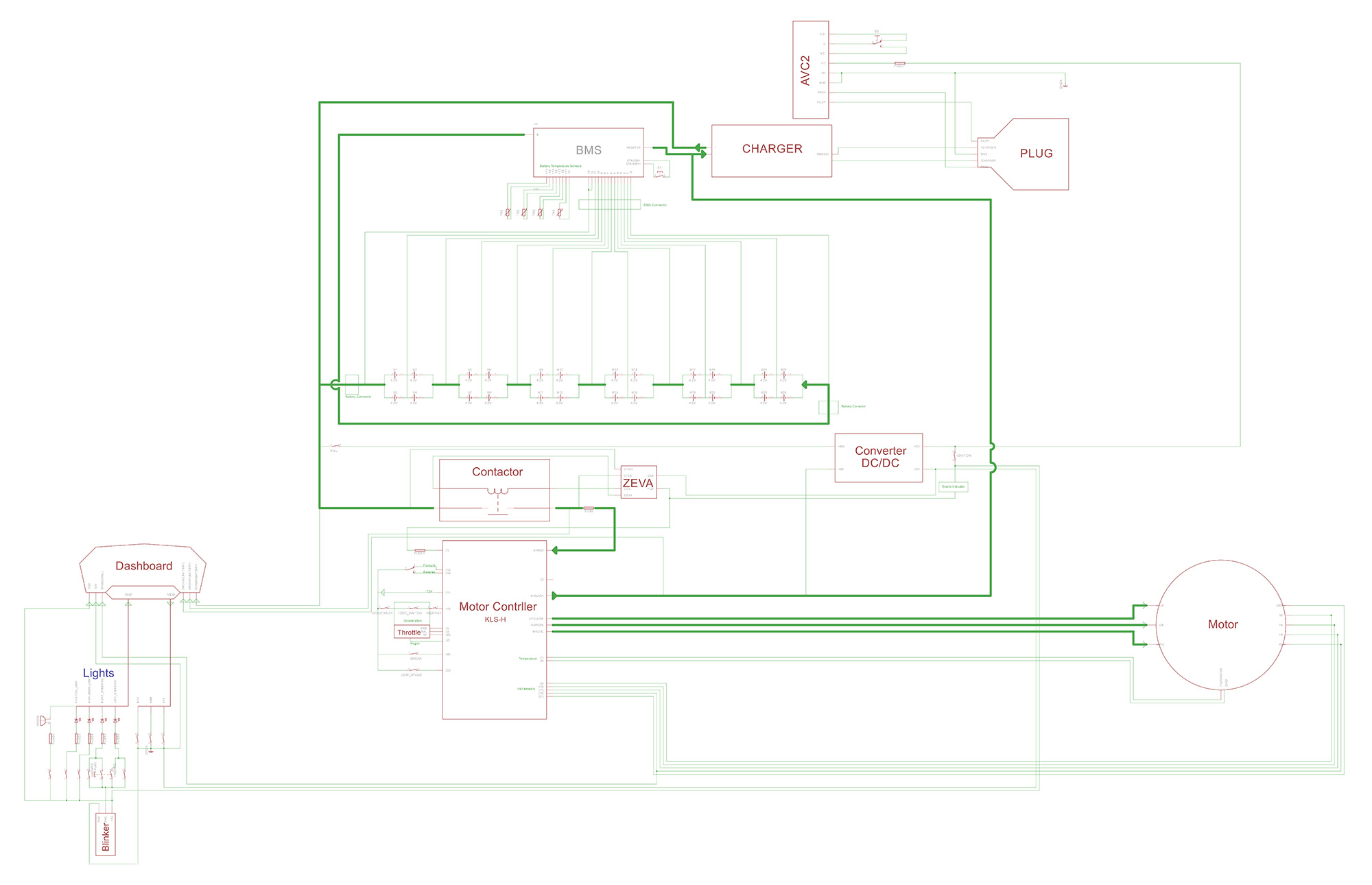

Davis Kuma has made ammendments to his schematic that also include a several new components listed below:
– J1772 Active Vehicle Control Board-AVC2
– IEC62196 type 2 charging plug/socket
– 1200w onboard charger [48v/20A]
– Zeva precharge resistor
– Indicator relay blinker
PDF of the schematics is below:
