Final sub-frame laser patterns

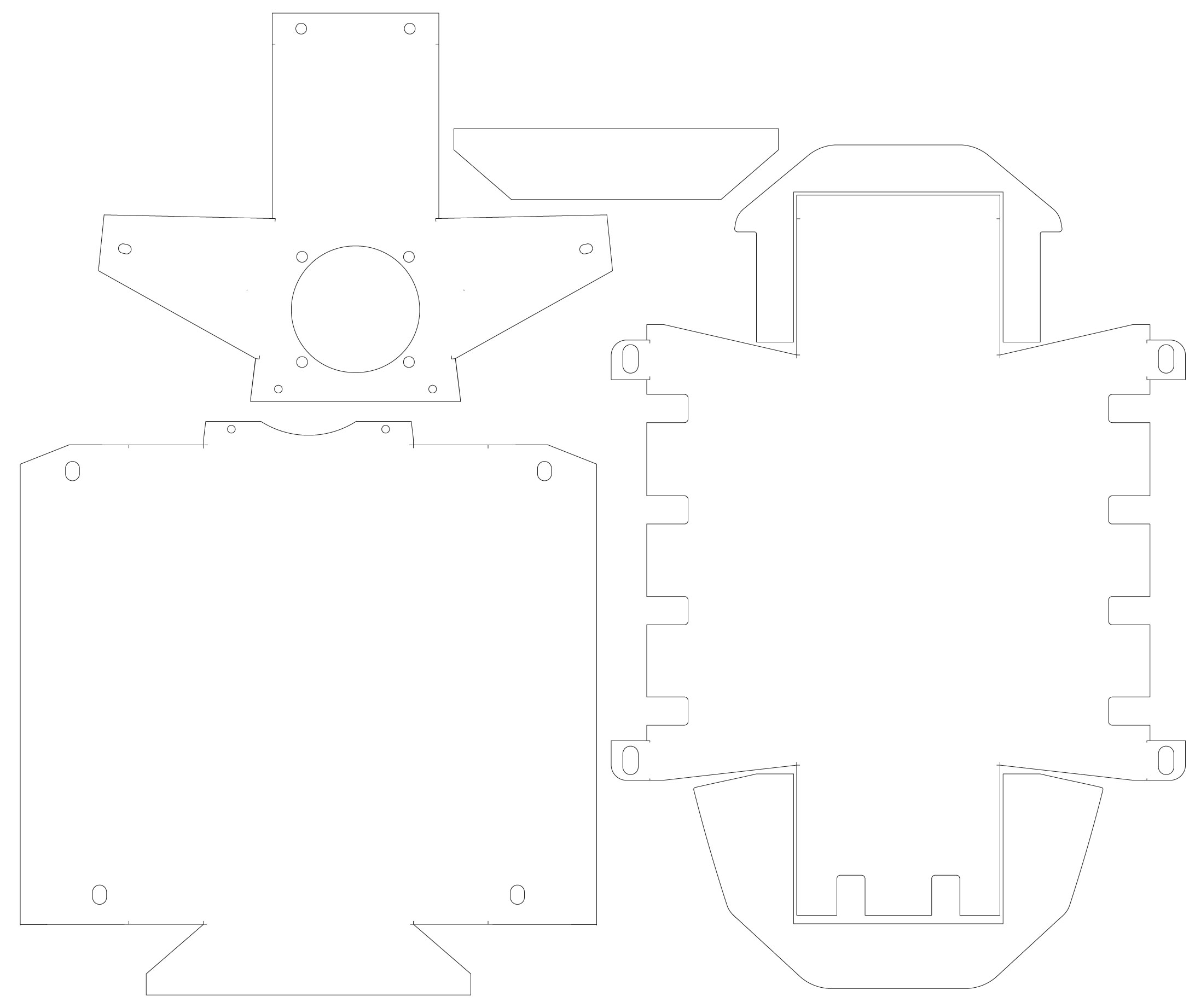

Finally finished some lasercut patterns. A couple of changes were made. Only subtle one such as the sub-frame section that holds the type 2 socket is now separated from the main body to make assembly easier. Also, have cut side walls to be replaced by polymer sheets to save weight. Have sent to machinist, should be good to see when cut.
