XJ600e: headlights

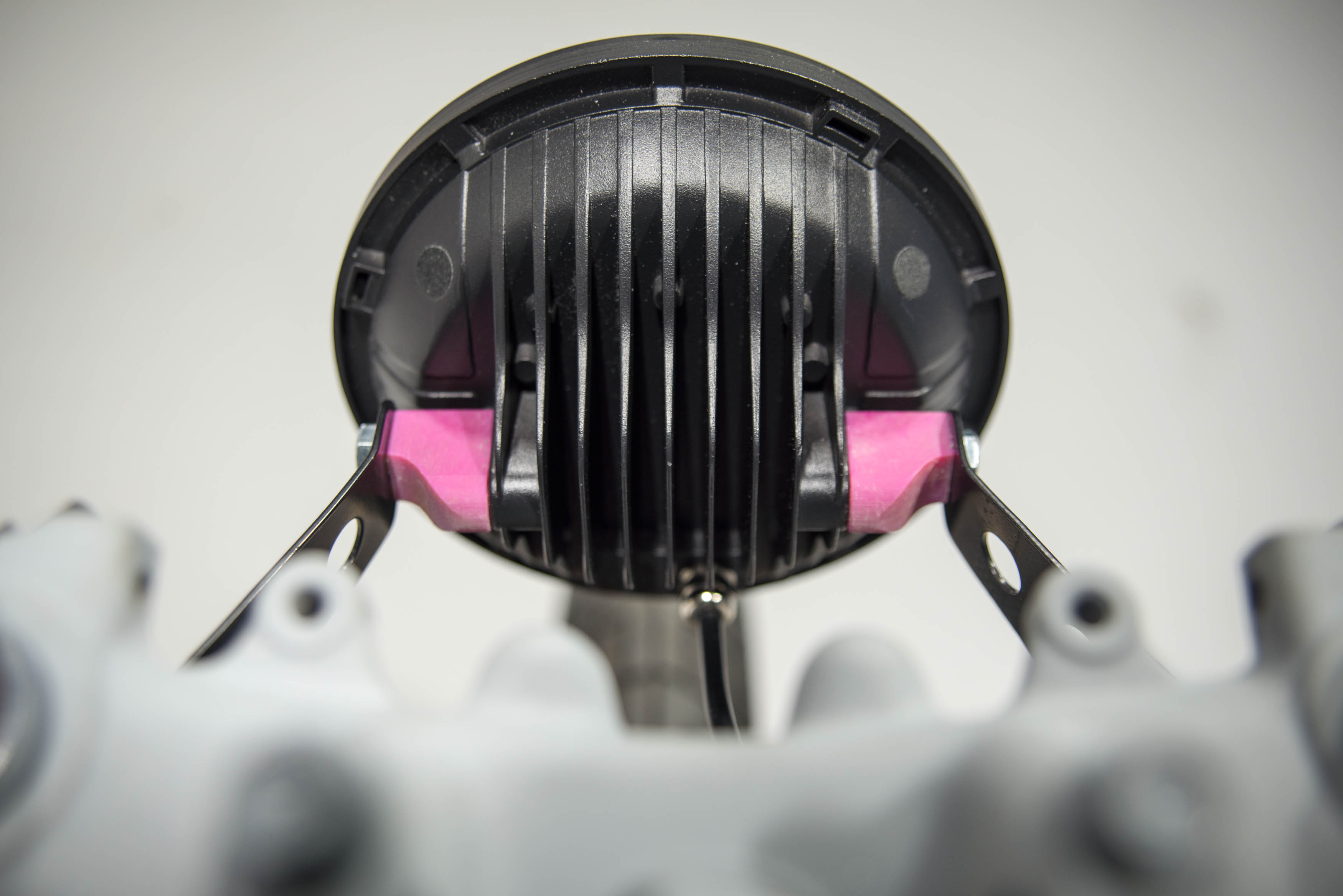

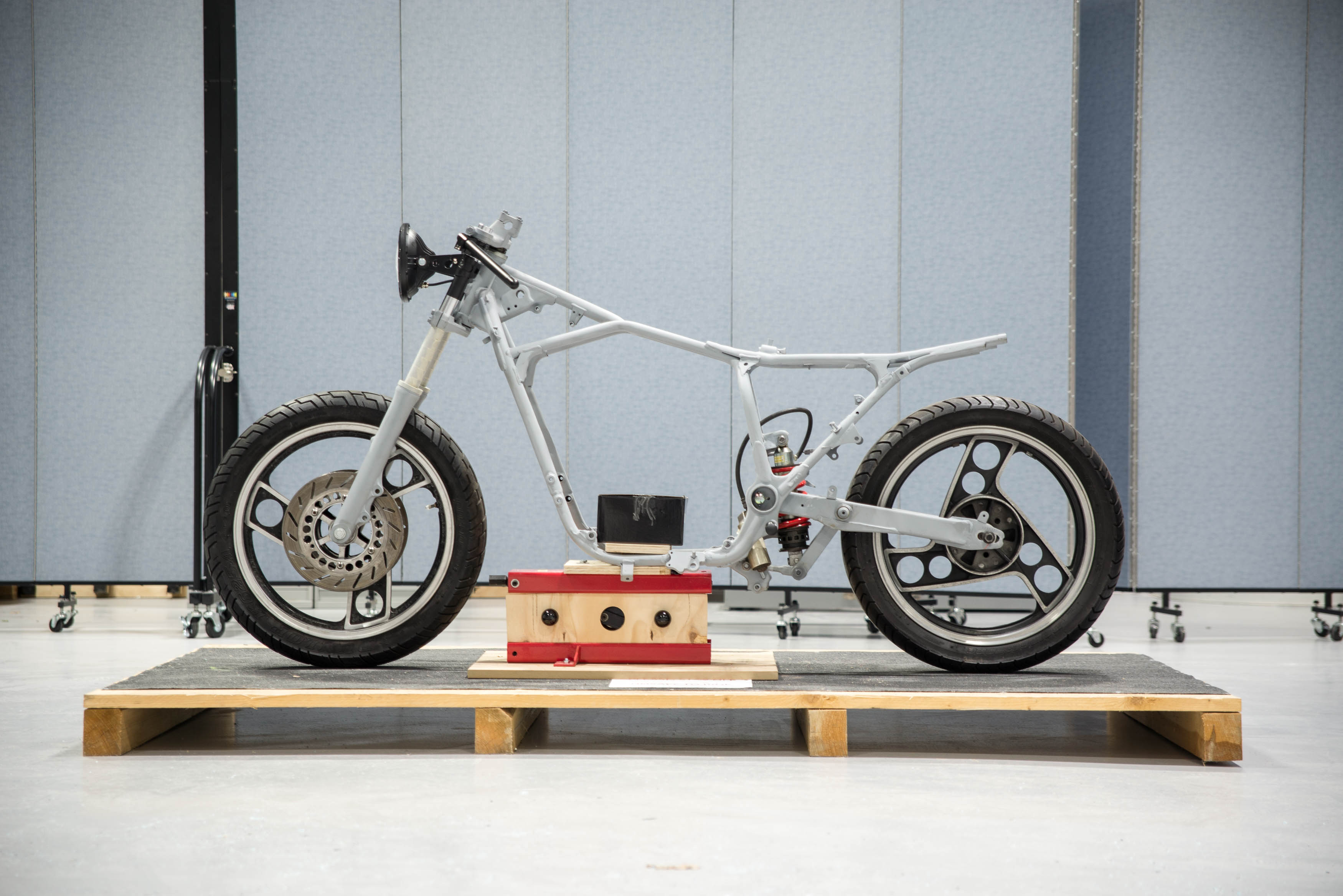

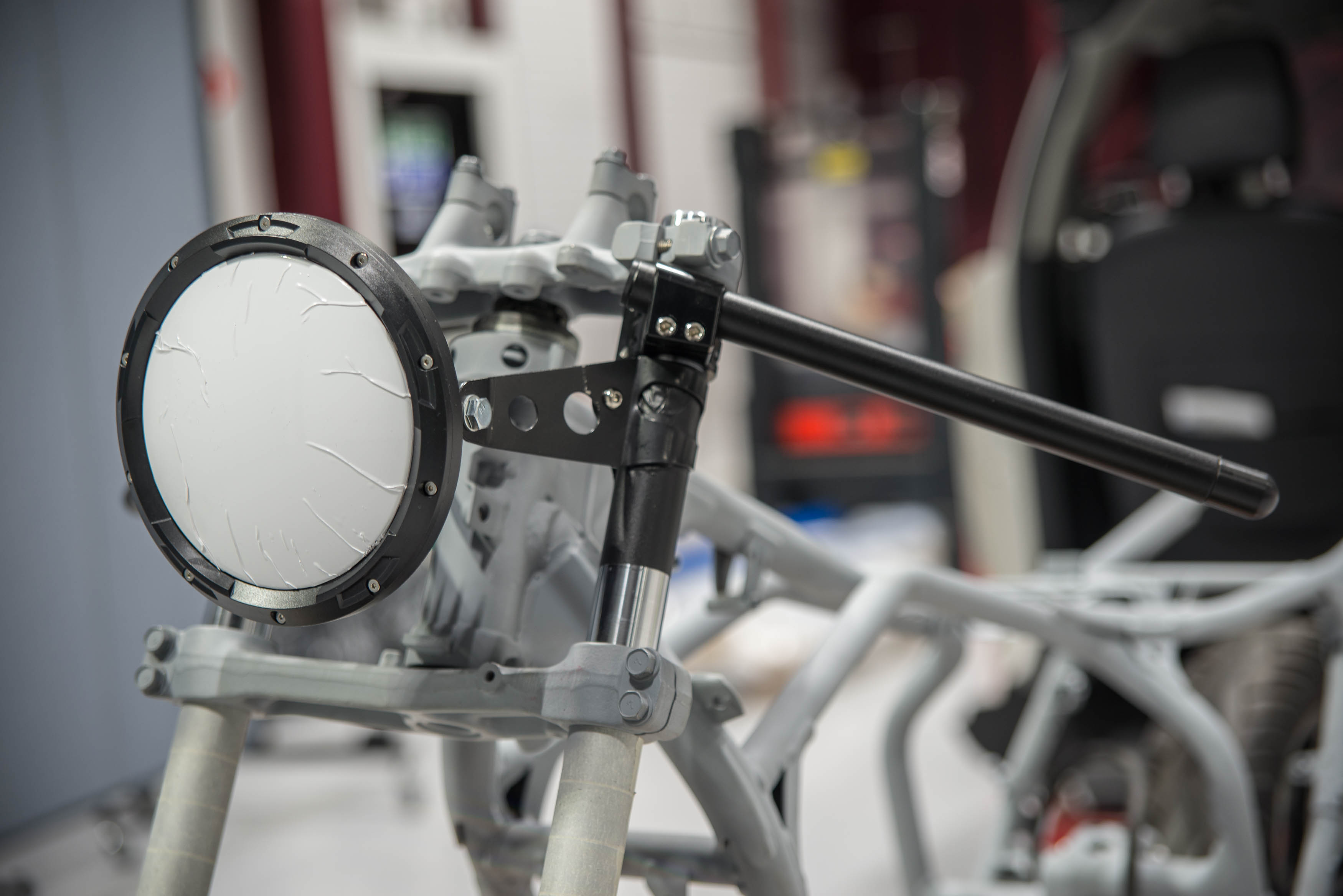

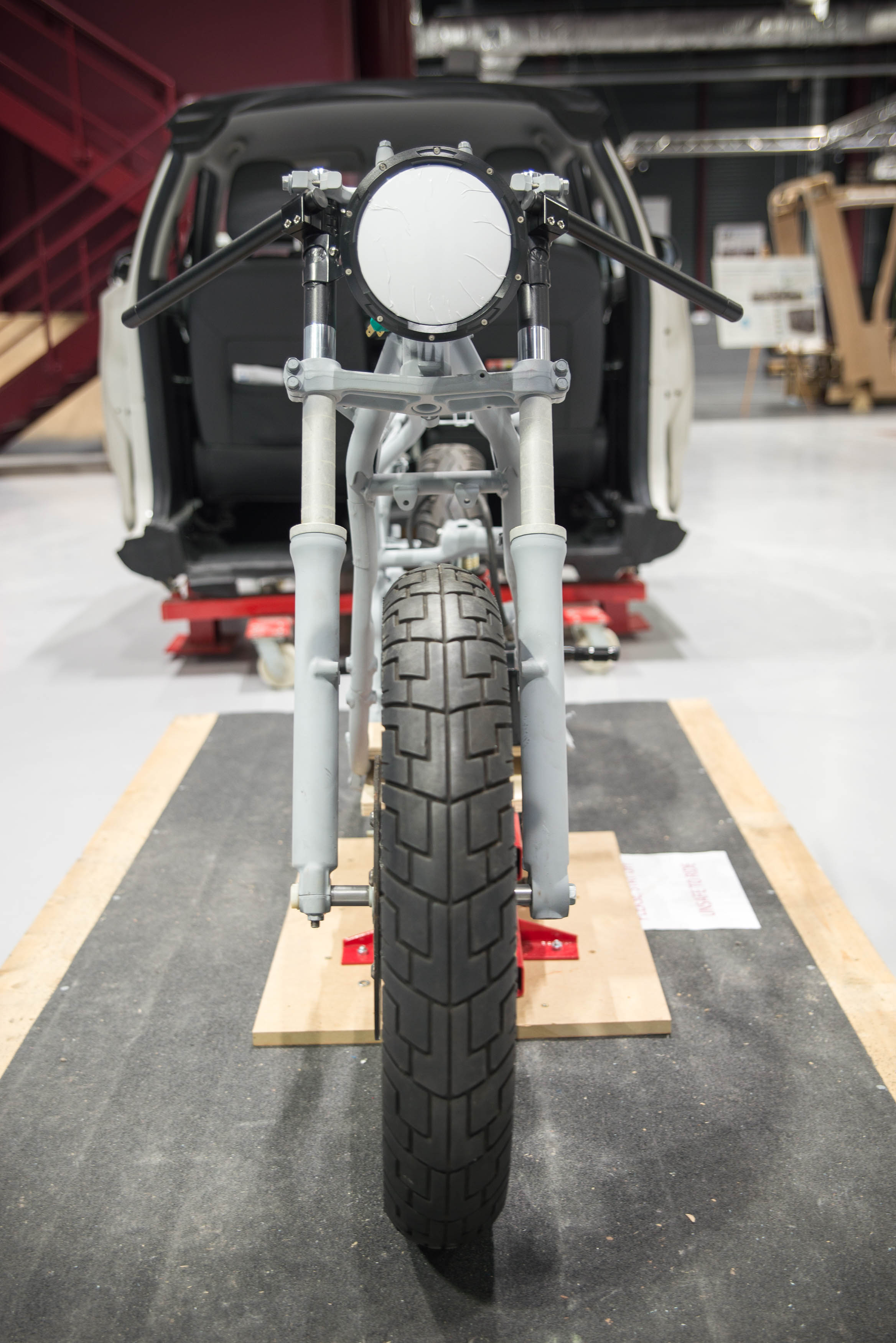

Have started to attain components for the XJ600e. Starting with a headlight, bought from China. Works well when lit with 24v. Need to investigate how this would be powered with out the main battery pack. It has been suggested that I should use a second 24v power supply that is recharged by the main one with a DC to DC step down convertor – makes sense. Just need to build this in the CAD so see how it all works with the correct farings. I think it might have to drop down a bit lower in the stanchions to match the current ideal location.

Vendor details

-7″ round LED Hi-Lo headlight beam.
-Unversal fitment,such as fit for Harley-Davidson.
-Unique design,UV-resistant,innovative 4D round+ D-shaped projector lens.
-Low consumption ,efficient, energy-saving and protect environment.
-Durable,efficiently,long life.
-Optimized heatsink design.
-Waterproof, dustproof, anti-explosion.
-Come with H4 connector
-Some models may require H4-H13 Adapter (Not Included) (2014-2015 some models)
-Bracket Modification may be required on some motorcycle models Specification:
-Housing Color: Black
-Light Color: Pure white
-Material: Die-cast Aluminum Housing
-Len Material:Polycarbonate Lens
-Voltage: 10V to 24V DC Input (All Vehicle and Motorcycle Voltage)
-Power:75W Total in LED Power using the latest LED Technology
-Lumens: Approx 1750 Lumens Low Beam
-Approx 3350Lumens High beam
-With Hi/Lo Beam and DRL
-Color Temperature: 6500K-7000K
-Working Temperture:-40°C- 85°C
-Waterproof Protection:IP67 Package Included:
-1 x 7 Inch LED Headlight
-1 x H4 Connector
