Swingarm shock mount

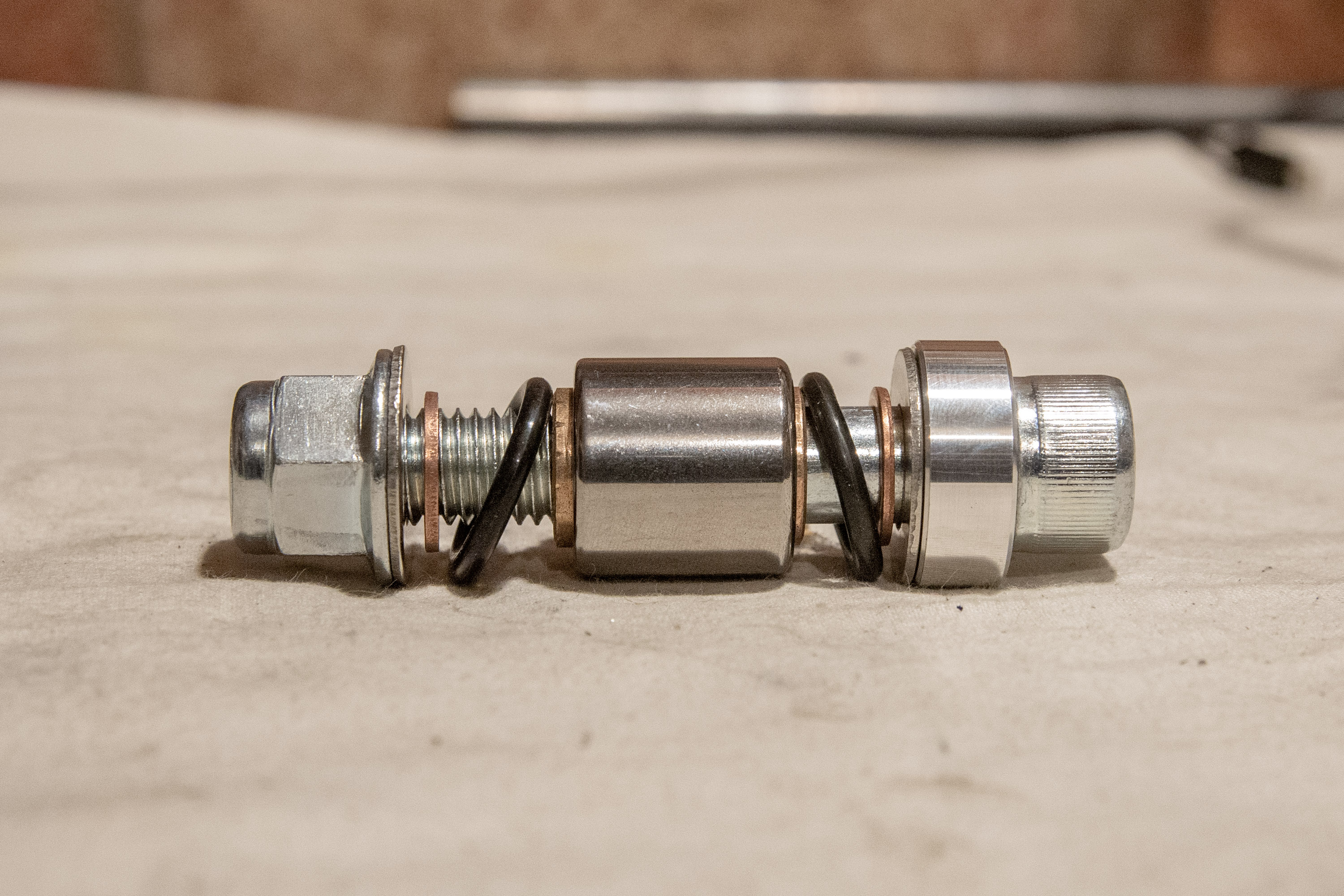

The original mount from the Showe shock was redundant because it used a new M12 12.9 grade bolt that fits the frame. With a needle bearing (OD22 x ID16 x L22mm), Bronze Oilite Bearing Bush (ID12 x OD16 x L25mm), copper washers (ID12 x OD16 x L1.5mm), and some 16mm 3mm section oil seals a make shift mount will hold it in place. This will be add hardness to the ride though. A rubber-metal bond bush mount has been sourced so if it is too hard then it will replace the bearing mount.
