Battery Management System

Davis Kuma the new electronic engineer on the project has recommended a Chinese Battery Management system: 16S High Current 200A 48V Li-ion Battery PCB PCM with Balance. Details below:

Features:
With balance, Same port for charge and discharge, Waterproof

Main functions:
– Over charge protection
– Over discharge protection
– Short Circuit protection
– Over current protection

Specifications:

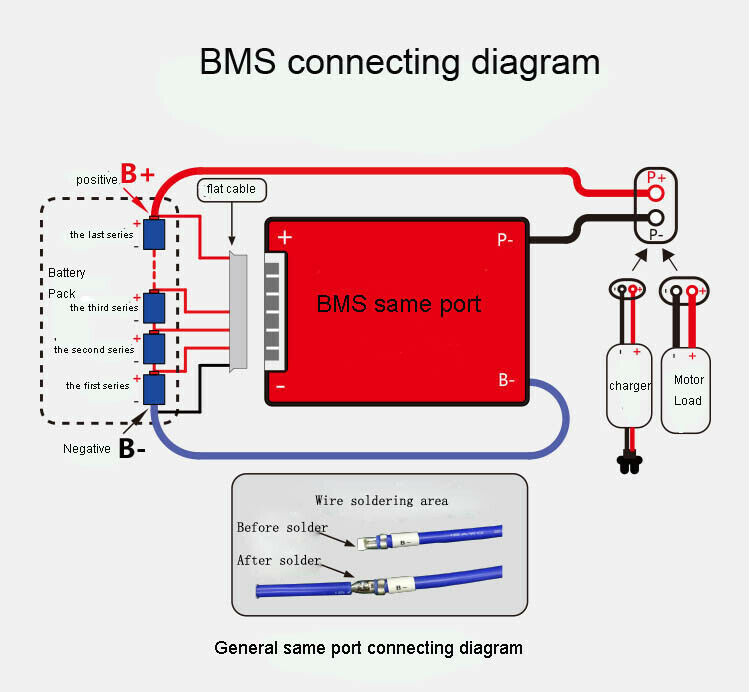

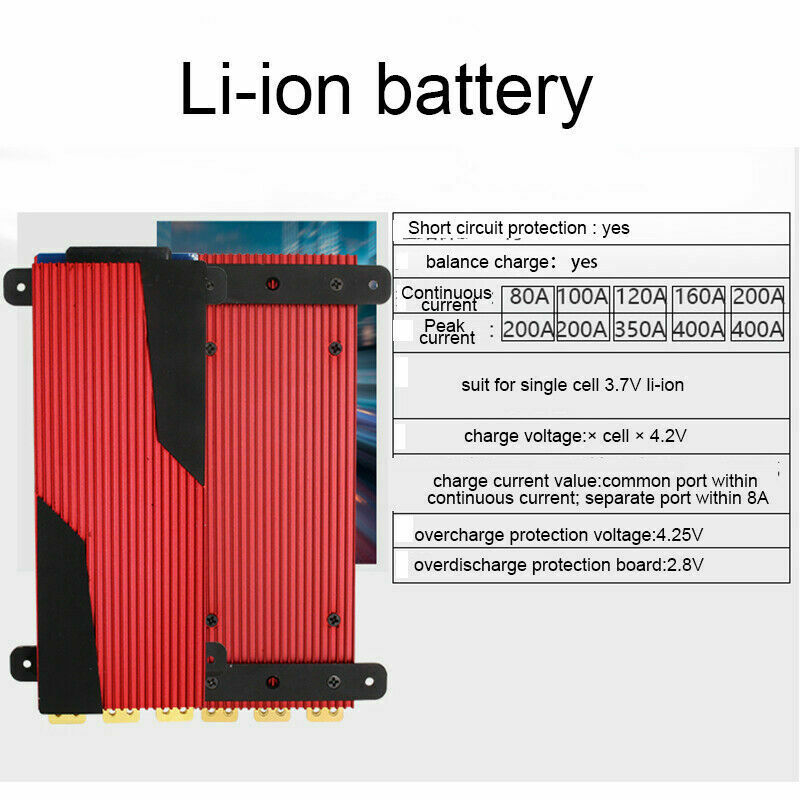

14S / 52V Detail Spec
Discharge Maximal Continuous Discharging Current80A100A200A
Peak Discharging Current 200A200A400A
Over Current Protection Current 200A200A400A
Charge Charging Voltage58.8V
Charging Current 80A 100A 200A
Over charge protection Over Charge Detection Voltage4.25±0.025V
Over Charge Detection Delay Time 1.0S
Over Charger Release Voltage 4.19±0.05V
Cell balancing Cell balancing Detection Voltage4.18V
Cell balancing Release Voltage 4.18V
Cell balancing Current 35±5mA
Over discharge protection Over Discharge Detection Voltage 2.8±0.05V
Over Discharge Detection Delay Time 1.0S
Over Discharger Release Voltage 3.0±0.05V
Over current protection Over Current Detection Voltage150mV
Over Current Detection Delay Time 9MS
Over Current Protection Condition Disconnect the load
Short Protection Detection ConditionExterior Short Circuit
Detection Delay Time 250uS
Release Condition Disconnect the load
Temperature Protection 65℃ or 75℃
Internal Resistance MOSPET ≤10mΩ
Size 200A (180*66*27.5mm)

1. Overview: 16s 200A bms is used for 16 series 52V battery pack. We can design it for various lithium batteries like LiFepo4, LiMn2O4, and Li-polymer etc. The main functions are: over charge protection, over discharge protection, over current protection, short-circuit protection, temperature protection etc. According to the customer request we can develop PCM in different sizes and structures. BMS manufactured by high quality Mos and IC imported . Keep your battery long cycle service life time.

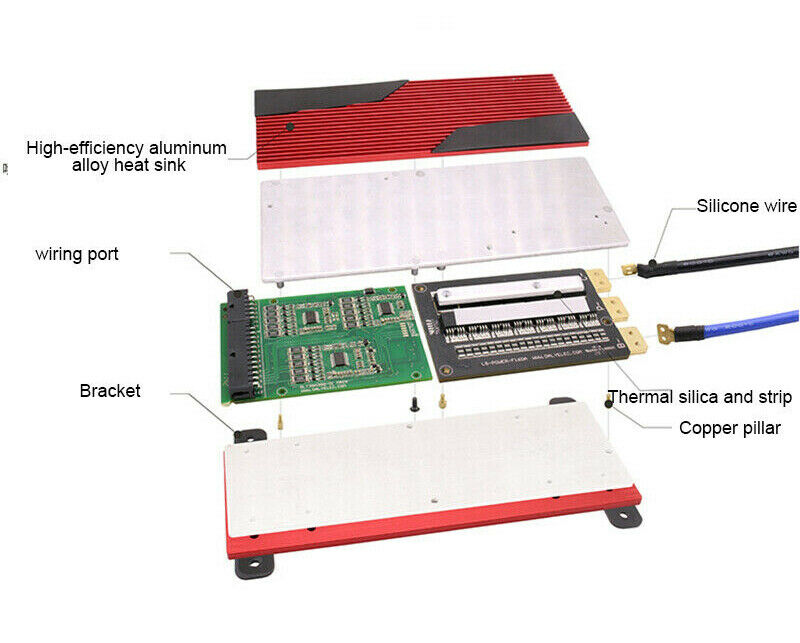

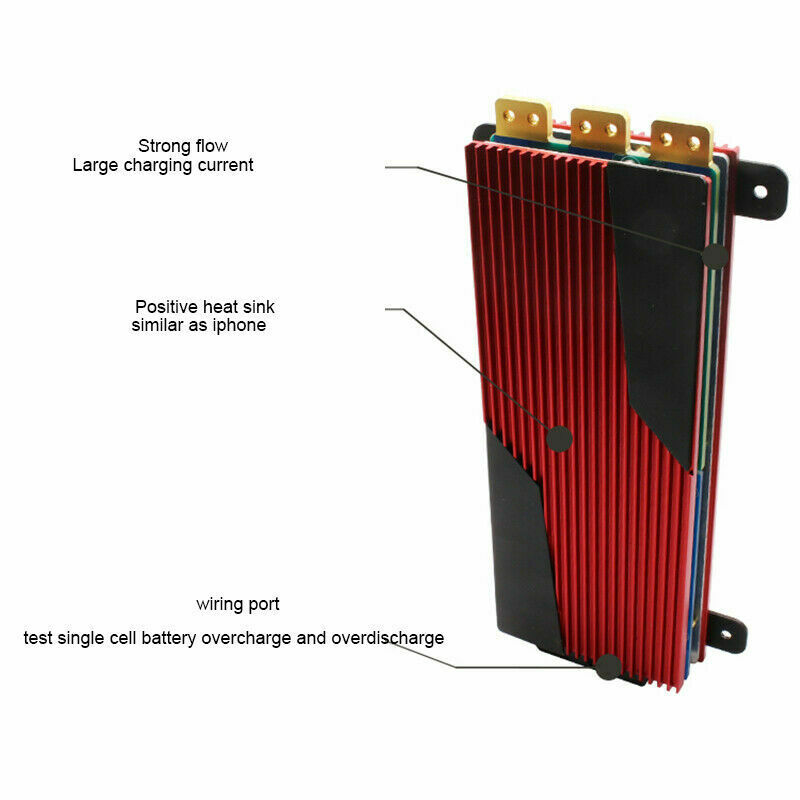

2. Advantage: Use top quality (A-level) protective integrated circuit IC, from the solution of Japan. Strong load ability, constant discharge current 25/35A/45A/60A, use high voltage resistance, low inner resistance power Mosfet. The heat sink will greatly help cooling. IC itself has power balancing function. The circuit is simple and reliable. Typical voltage detection for each cell so each battery will be prevented over charged or over discharged. Over current and short circuit protection function is very reliable. Long-time short circuit of the load won’t affect the PCB and the battery. Temperature protection during charging and discharging. Extreme low power consumption. The consumption of the whole device is less than 50uA. PCB use high anti-corrosion, high water resistance, high impedance ESD conformal Coating
