BMS position

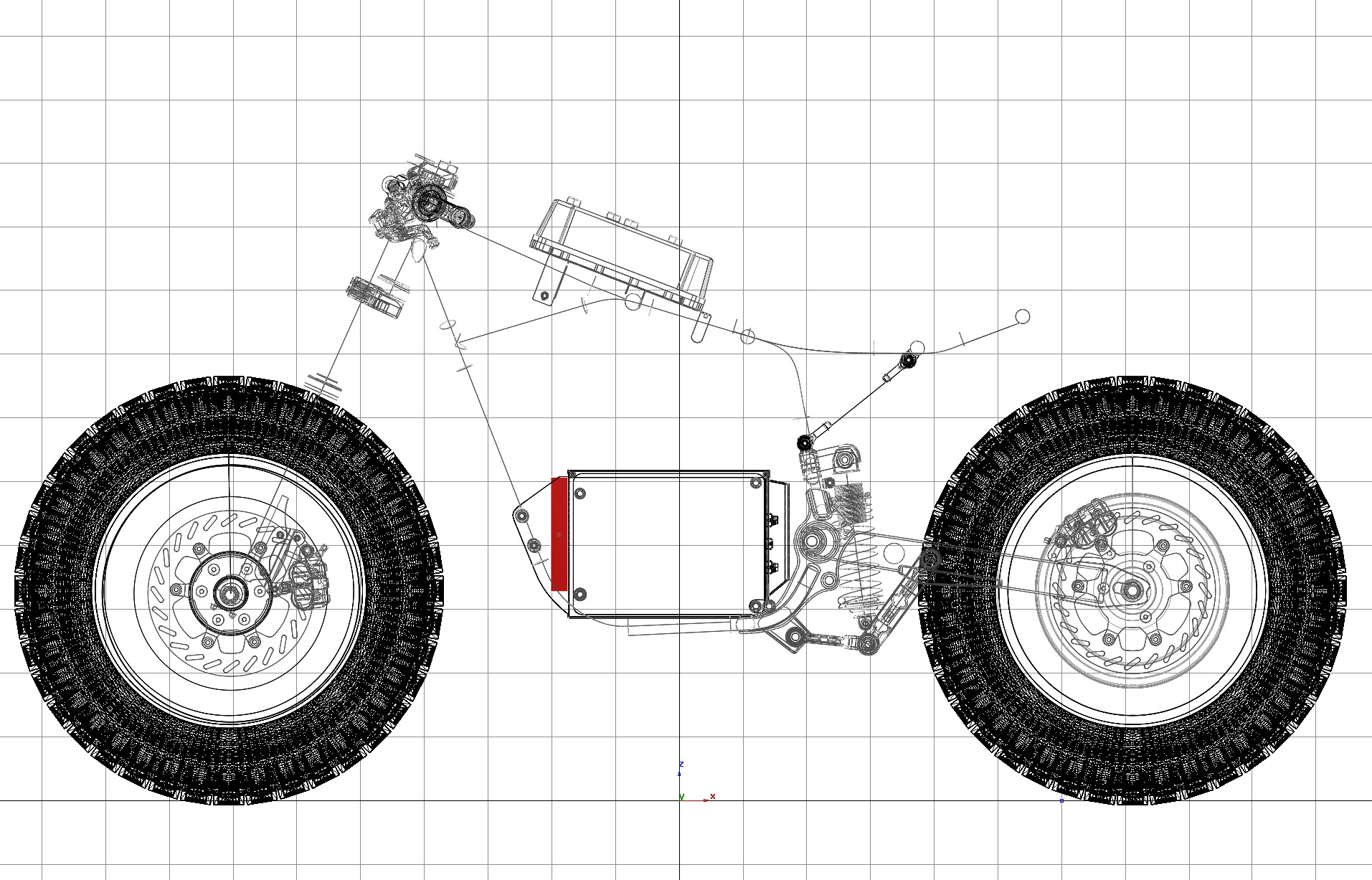

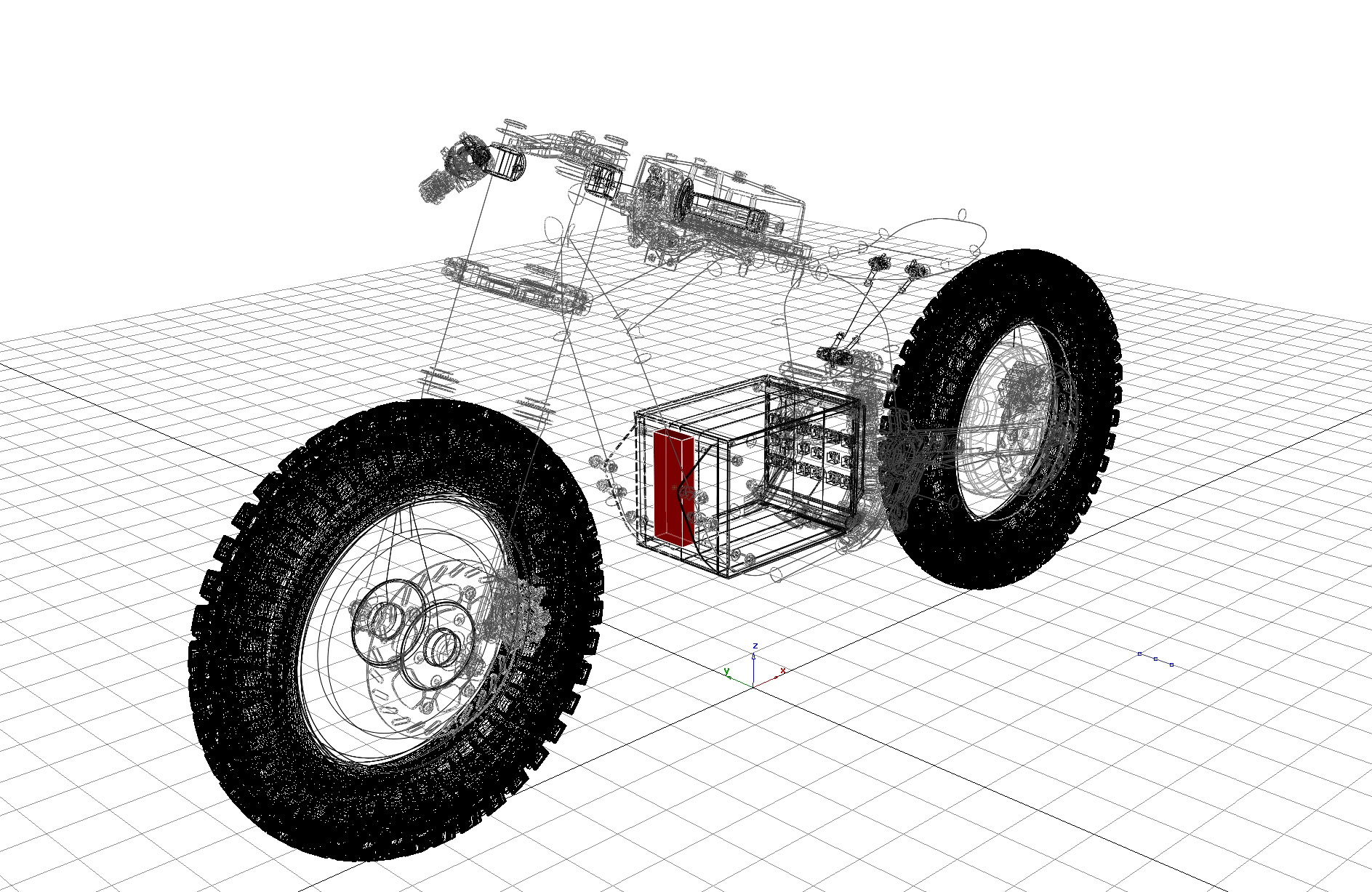

In CAD the Battery Management System box (66 x 180 x 27.5mm) locates nicely at the front of the battery box. Considering that it needs heat sinks to dissipate heat this could be a good position to gain direct air cooling if the bodywork is managed well. The top of the battery box will need to be redesigned to accommodate wiring that will run on top of the cells, front rear to front.
