Circuit refinements

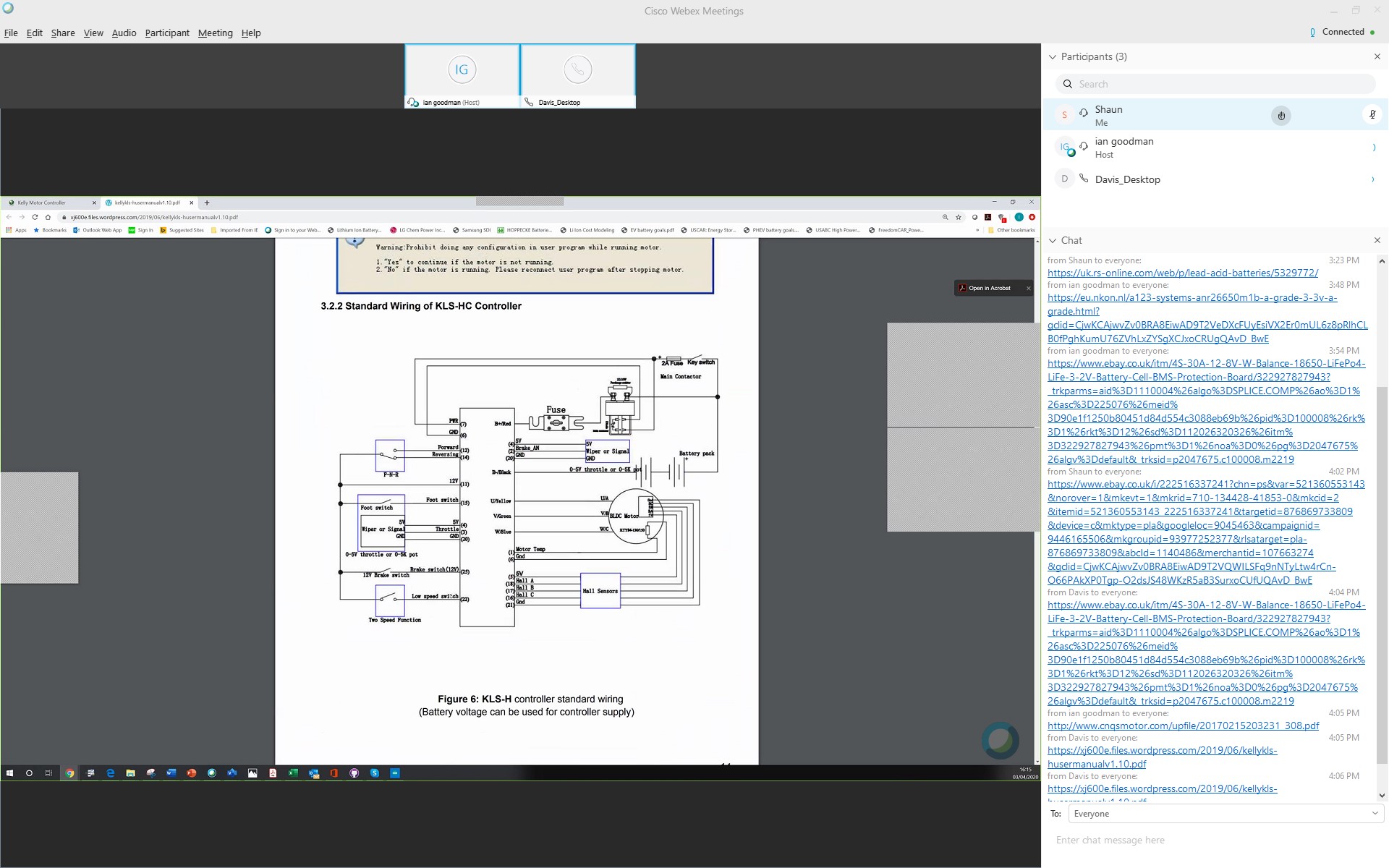

Had a great conversation with Ian Goodman and Davis Kuma concerning the electrics for the XJ600e. Summary of the meeting was:

– Add 12v battery in parallel to stop chatter that might turn off the contactor
– Change kill switch so it runs in series with the 12v supply
– Make a 4th output to Arduino once mains contactor is finished.
