Mock controller subframe v.5

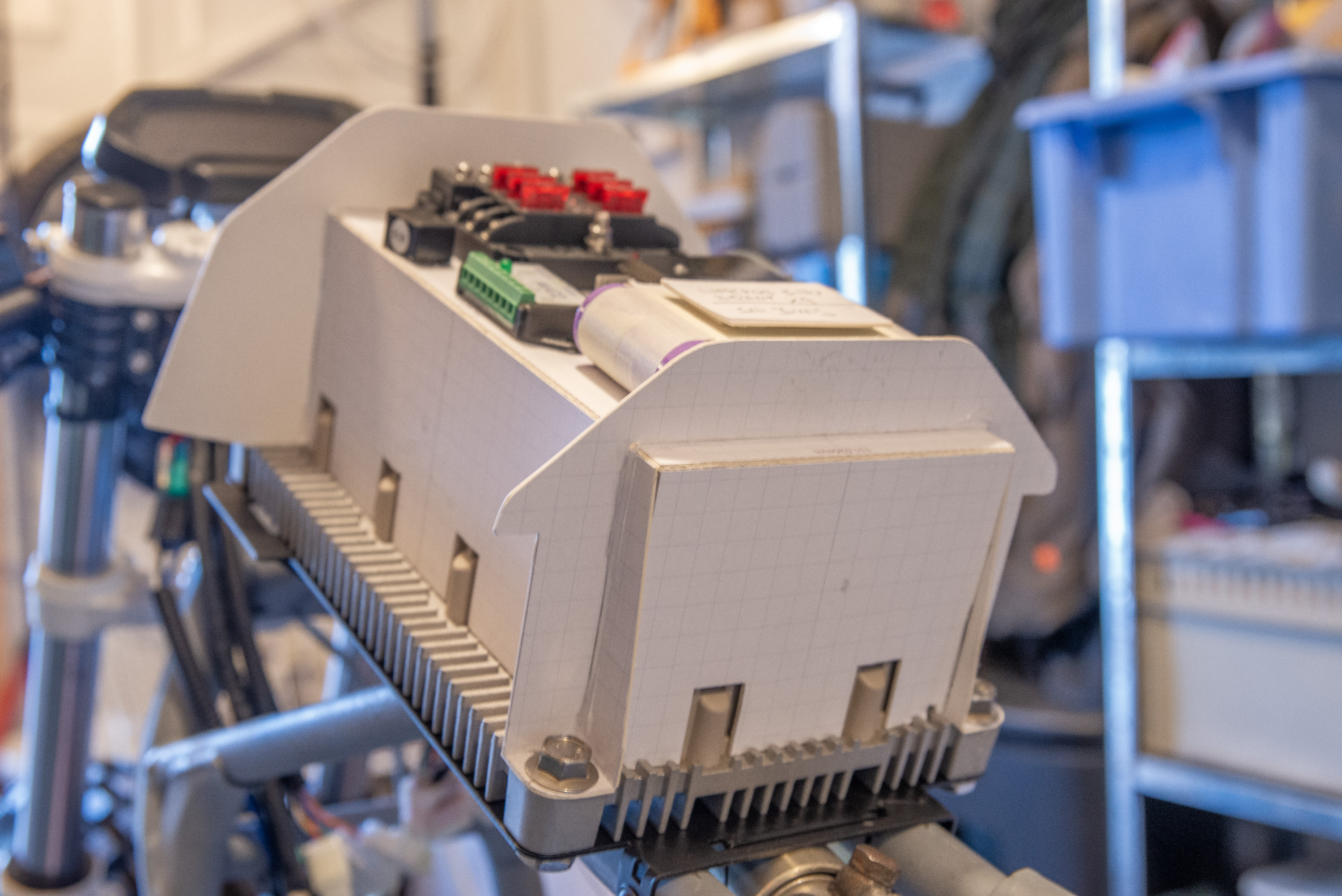

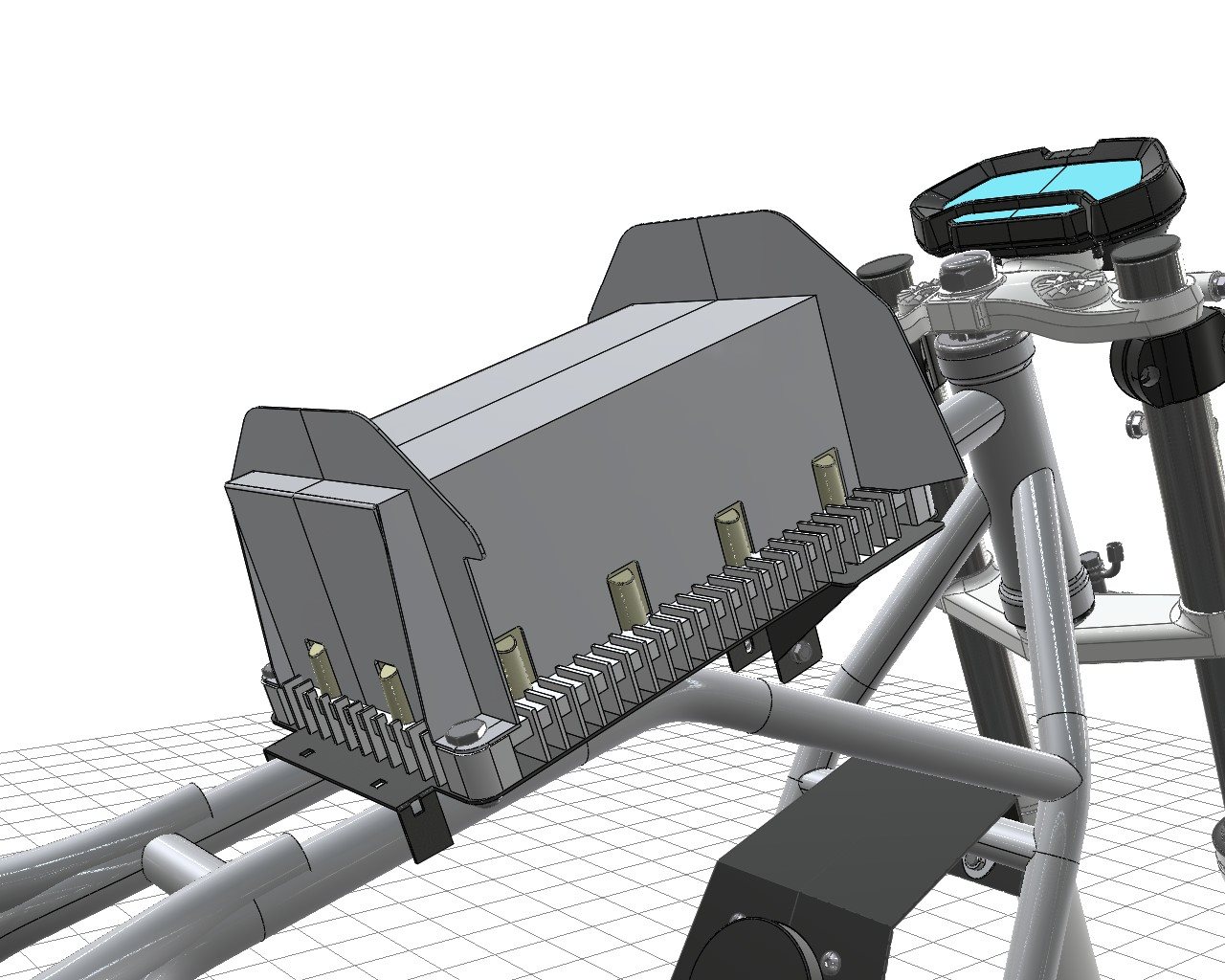

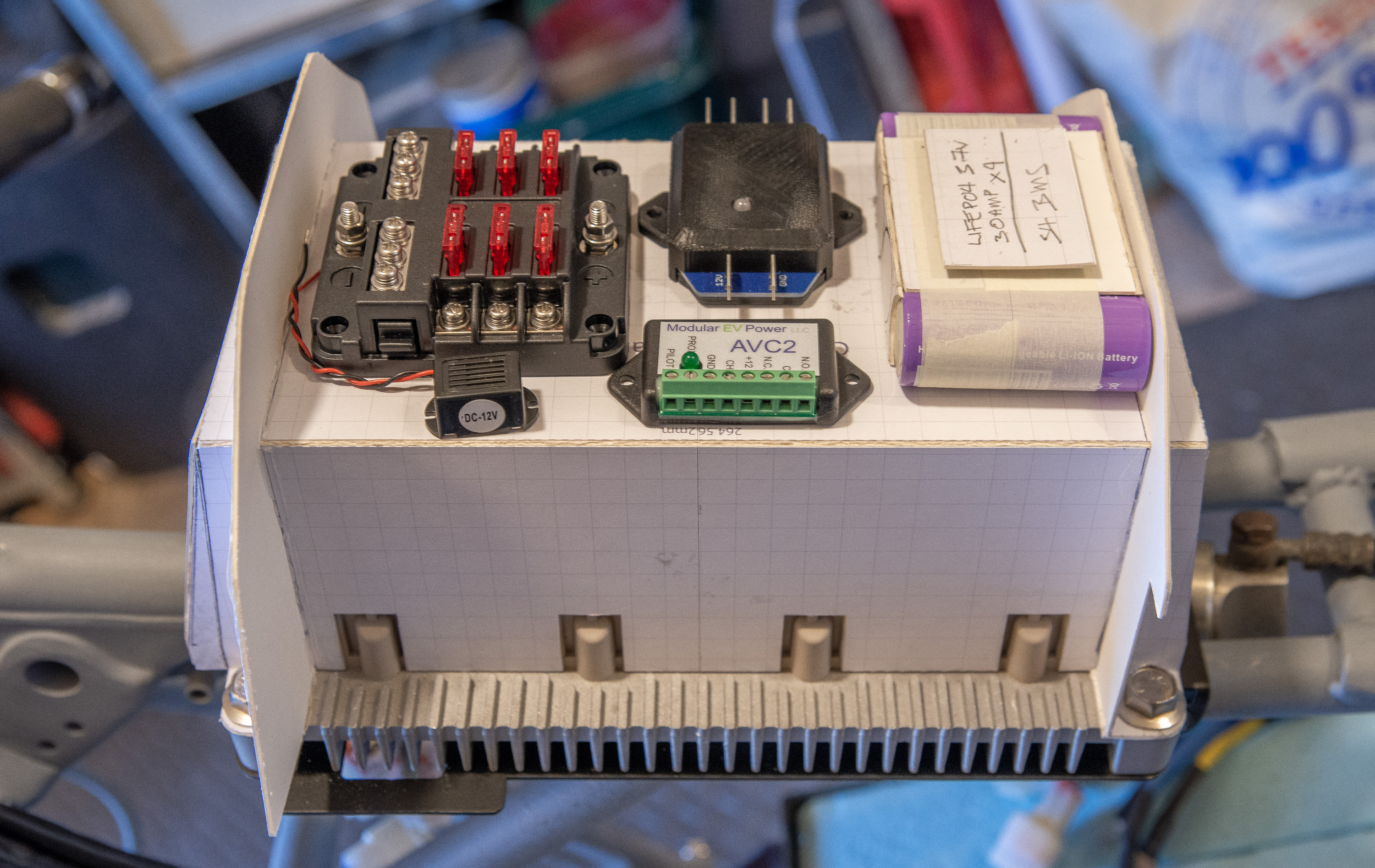

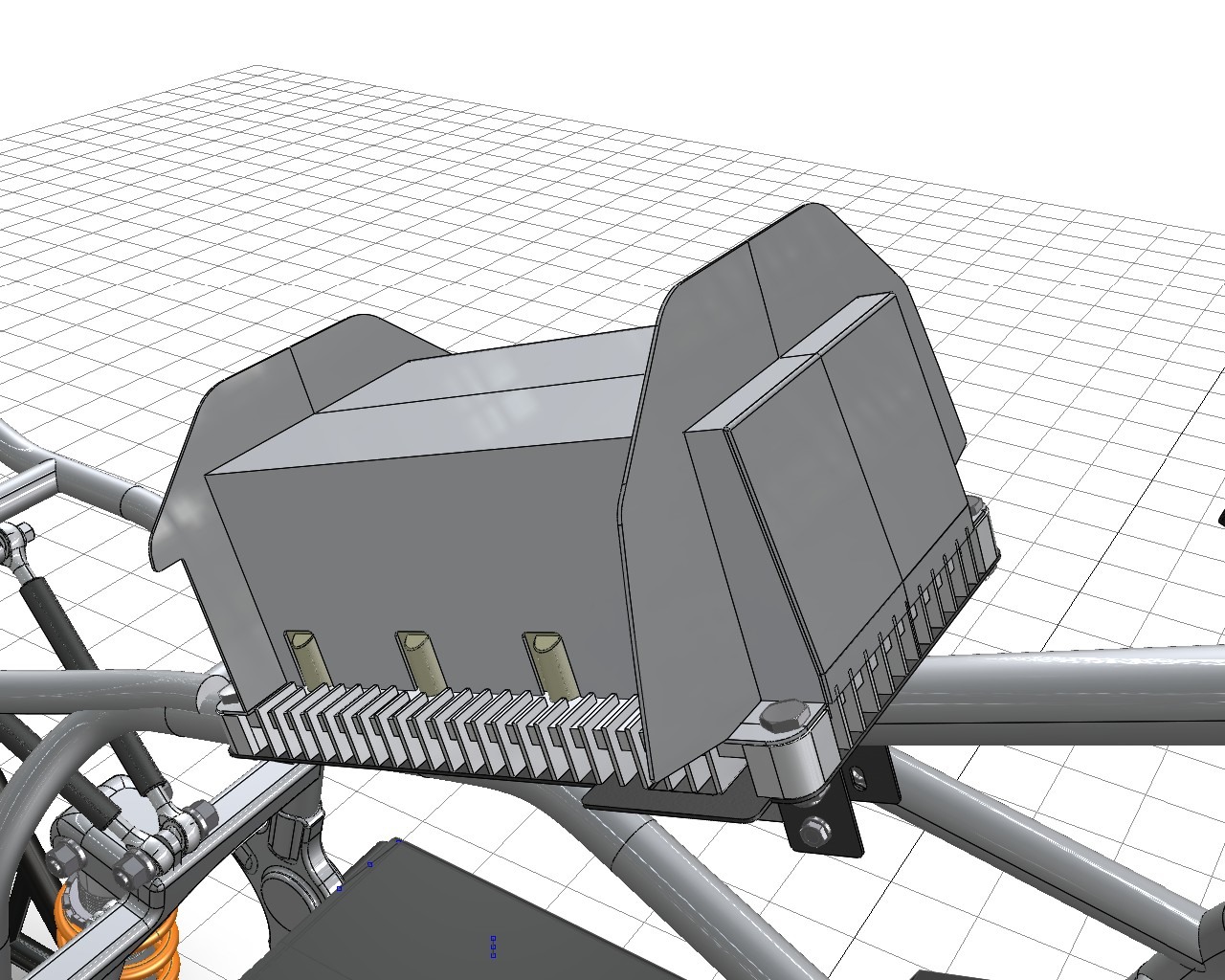

A finally think i have a final part and pattern to lasercut for the controller subframe. versions 3 and 4 had minor tweeks and changes. however the latest revision is modelled to 1.5mm thickness steel. and covers the controller better while still allowing the wires to run out of the controller pics and pattern below. Next step — fabricator to run a text cut.
