Isolator carriage v2

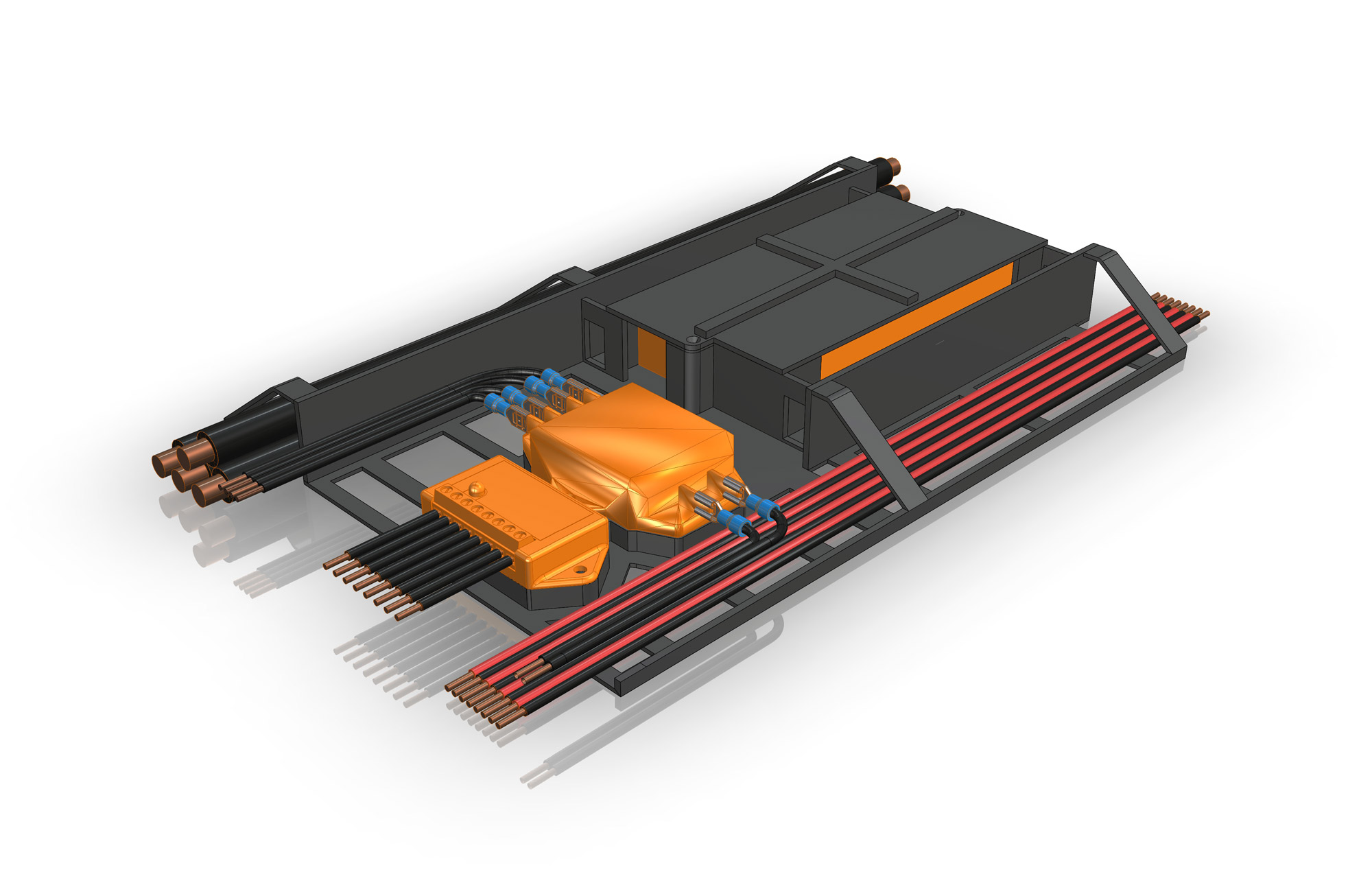

Have made some changes to v1 design of the isolator carriage. A bit more cable management and some amendments to the BMS to ensure the charge input cables are orriended correctly, etc. Need to print the design to double check it maybe get some advise of the management of the cables. Currently the high and low voltage cables are placed either side of the BMS but need to double check this idea.
