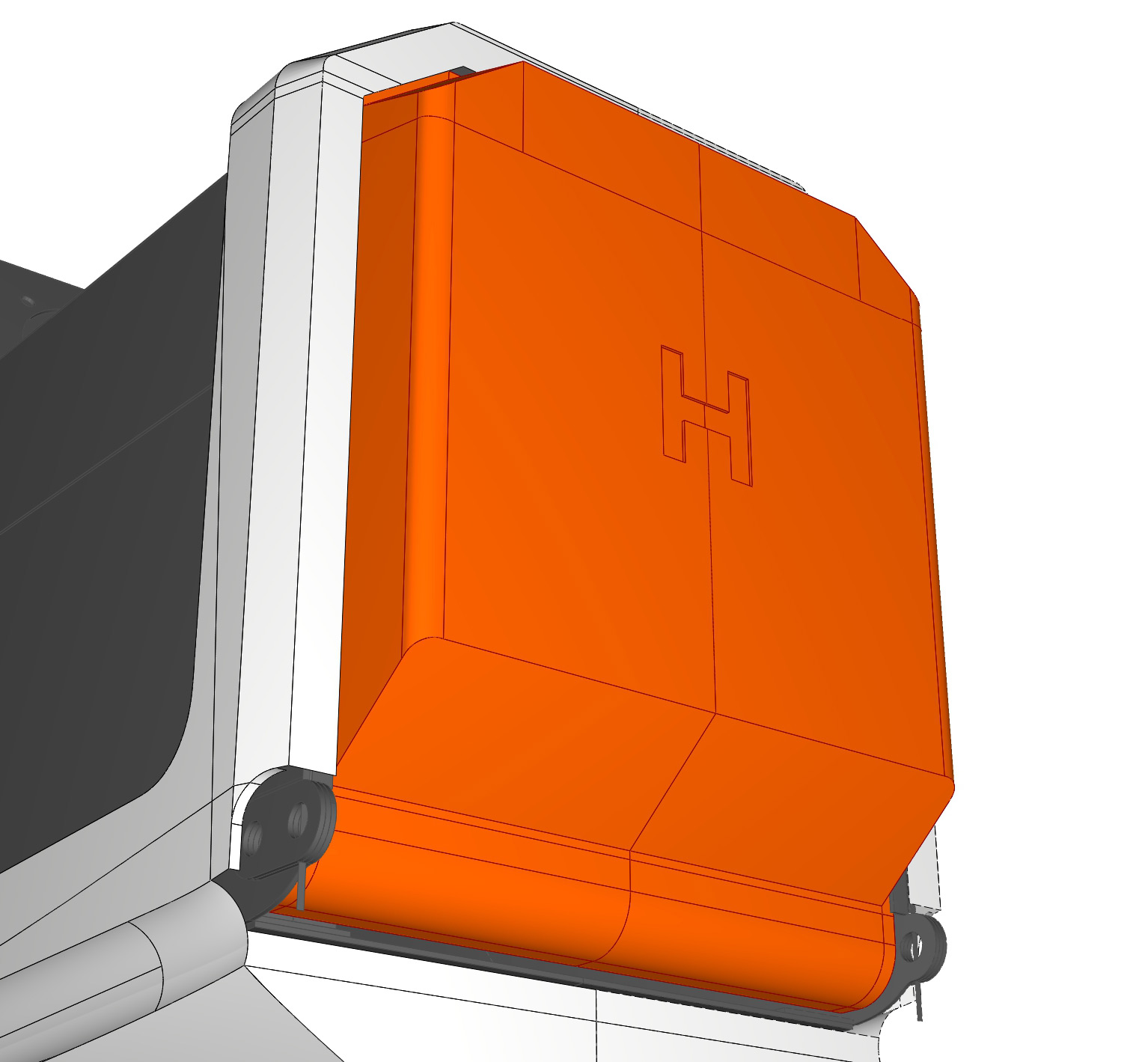

Rear battery box cover v2

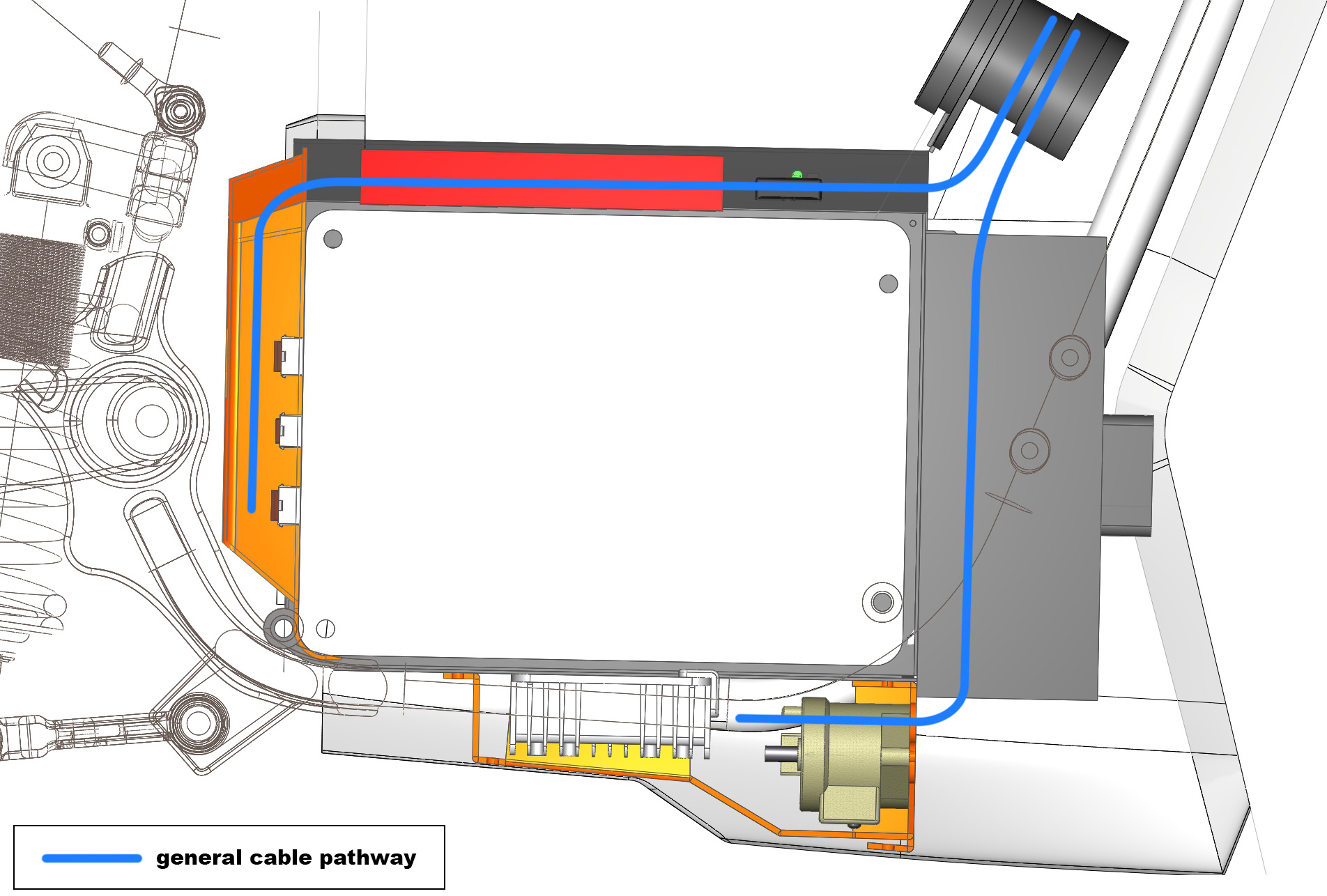

I have spent an evening making some changes to the design of the original battery box to give better clearance for the cables I originally planned to through the bottom of the box because that is where the BMS used to be but now that it is better placed above the battery amendments need to be made. The new cable pathway is shown on pics. Need to fabricate the box cover to check fitment.
